The broadcast industry is undergoing a fundamental infrastructure shift: the migration from traditional green screen (chroma key) environments to immersive LED background screens.
For decades, green screens were the standard for background replacement. However, they introduce significant post-production friction and often result in a "flat" aesthetic due to lighting mismatches.
Today, from high-end talk shows to corporate webinar studios, content creators are adopting Direct View LED (dvLED) volumes. This technology allows for "In-Camera Visual Effects" (ICVFX), where the background is captured in real-time, fully integrated with the talent.
For procurement managers and studio engineers, choosing the right hardware is critical. This guide breaks down the technical criteria for selecting a broadcast-ready LED display.
The superiority of an LED volume over chroma keying is not just aesthetic; it is operational.
Unlike a green screen, which acts as a passive reflector of green spill, an LED wall is an emissive light source. It bathes the subject in accurate, dynamic lighting that matches the digital background. That is to say, if a virtual police car flashes red and blue behind the talent, those colors naturally reflect on their skin and glasses.
The image leaving the camera is the final image. There is no need for complex keying, spill suppression, or transparency mask rendering. It reduces the processing load on the streaming hardware and eliminates "fizzing" artifacts around hair or transparent objects.
While the initial hardware investment is higher, the operational savings are immediate. Post-production time is virtually eliminated, and the need for complex studio lighting arrays is drastically reduced, as the screen itself provides the ambient fill light.

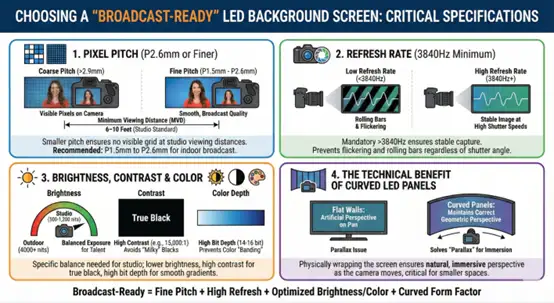

Not all LED panels are suitable for camera work. A panel designed for a billboard will fail in a studio environment due to scan lines and Moiré patterns. Below are the critical specifications for a studio-grade build.
Pixel Pitch (P2.6mm or Finer)
Pixel pitch—the physical distance between pixels—determines your Minimum Viewing Distance (MVD). In a studio, the camera is often positioned 6–10 feet from the wall.
Cameras capture images at high shutter speeds. If the LED screen refreshes slower than the camera shutter, you will see black rolling bars or flickering on the feed.
Standard: A refresh rate of 3840Hz or higher is mandatory for broadcast. This ensures the screen refreshes ~64 times per video frame (at 60fps), guaranteeing a stable image regardless of shutter angle.
Studio panels require a specific balance of optical performance.
Flat walls can look artificial when the camera moves. Curved LED panels solve the "parallax" issue.
By physically wrapping the screen around the field of view, the background maintains correct geometric perspective as the camera pans. This is critical for immersion in smaller studio spaces.
LAMPRO specializes in manufacturing high-performance LED panels for the professional AV market. Focusing on robust hardware and mature supply chain logistics, LAMPRO offers a economical alternative to premium-priced broadcast brands without compromising on core specifications.

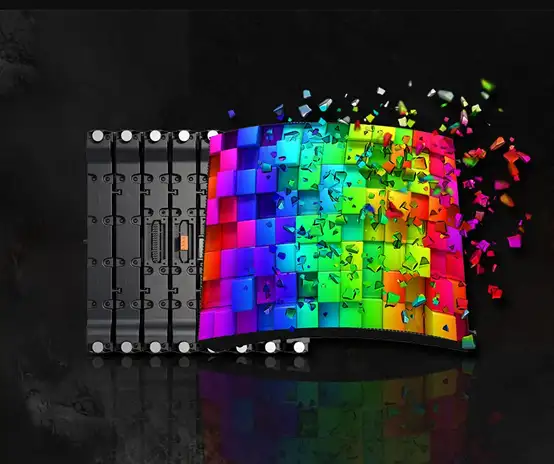

The WNX Series is a workhorse panel designed for permanent studio installations. It features a magnetic module design for rapid front-maintenance.
| Specification | Value | Benefit |
|---|---|---|
| Pixel Pitch | 1.9 / 2.6 / 3.9 mm | Flexible options for different studio depths. |
| Refresh Rate | 3840 Hz | Flicker-free performance for professional cameras. |
| Grayscale | 14-16 bit | Smooth color gradients with no banding. |
| Curve Capability | ±45° | Allows for immersive curved wall designs. |
The RNⅡ series utilizes advanced MIP (Micro LED in Package) technology to deliver superior contrast and protection, making it ideal for dynamic sets.
| Specification | Value | Benefit |
|---|---|---|
| Pixel Pitch | 1.5 / 1.9 / 2.6 mm | Ultra-fine pitch options for close-up shots. |
| Contrast Ratio | 15,000:1 | Deep blacks for cinematic visual quality. |
| Color Gamut | 96% DCI-P3 | Cinema-grade color accuracy. |
| Protection | U-Shield Tech | High impact resistance for durable operation. |
Project: Astana Shopping Mall, Kazakhstan | Product: LAMPRO WN Series | Scale: 73.65 SQM
While often used for broadcasting, LAMPRO's engineering capability is proven in large-scale commercial deployments.
At the Astana Shopping Mall in Kazakhstan, LAMPRO delivered a massive 73.65 square meter display. This installation demonstrates the hardware's ability to maintain uniform color and brightness across a vast surface area—a critical requirement for shopping centre advertising.
The project highlights LAMPRO's logistics strength: delivering and calibrating nearly 75 square meters of fine-pitch LED modules to Central Asia with zero defect tolerance. For a studio owner, this reliability translates to consistent uptime and hardware longevity.
LAMPRO provides a distinct advantage in this sector by focusing on the manufacturing of reliable, high-spec display hardware. By leveraging a mature global logistics network, LAMPRO delivers broadcast-grade LED background screens at a competitive price point, enabling studios to maximize their budget on the screen real estate itself.
Call or email us today, our expert team are here to support your display project.
