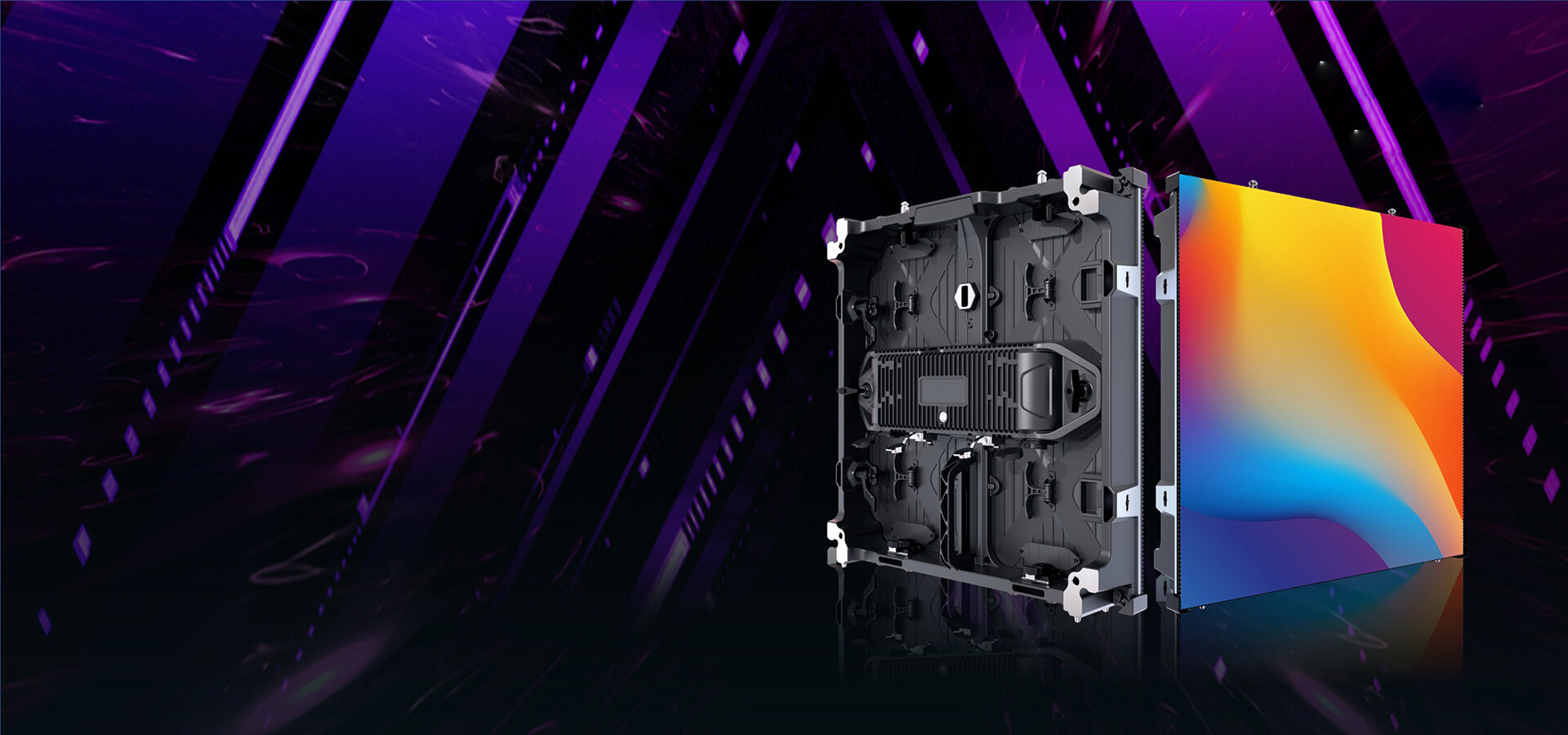

Cost-effective rental display
Widely applied to stage, show room and multiple occasions. Customized HD visual performance!
High-end magnificent in appearance, concise and beautiful.
2.6丨 2.9丨 3.9丨 3.9丨 4.8丨 5.9
147456丨 112896丨 65536丨 65536丨 43264丨 28224
1000丨 1000丨 1000丨 4500丨 4500丨 4500
Dismantling control box separately, convenient service; big control box makes better heat dissipation.

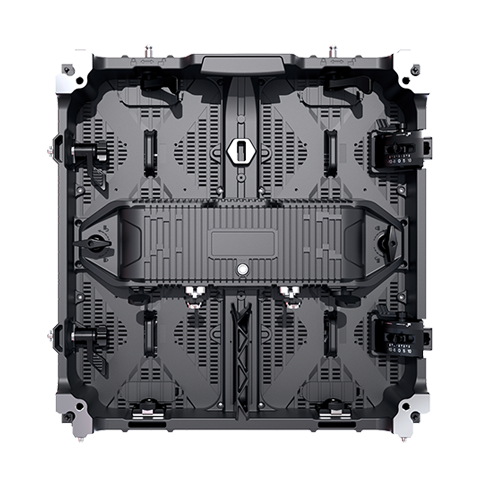

Light and slim cabinet, thickness 85mm, 500x1000mm cabinet weight 12kg/pcs, better installed, labor-saving
Equipped with matching curved locks to support -10 degree to +10 degree.
Covering indoor and outdoor popular pitches to satisfy more market demands.
Module front and rear maintenance
Module front and rear maintenance RNCX could be fixed by vacuum tools and magnetic tools;
RCX could be fixed by bow-shaped maintenance tools
Horizontal : 160 degree, vertical : 140 degree ( Estimated value）
| RNC2.6X SPECIFICATIONS | ||
| Version：V20210801 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1515 |
| Pixel Pitch （mm） | 2.6 | |
| Pixel matrix per panel | 192x192 | |
| Pixel density（pixels/sq.m.） | 147456 | |
| Cabinet Dimensions (WxHxD)/（mm） | 500x500x85 | |
| Module Dimensions (WxH)/（mm） | 250x250 | |
| Panel material | Die Casting Aluminum | |
| Cabinet weight (kg/panel) | 8.5 | |
| Module weight (kg/panel) | 0.6 | |
