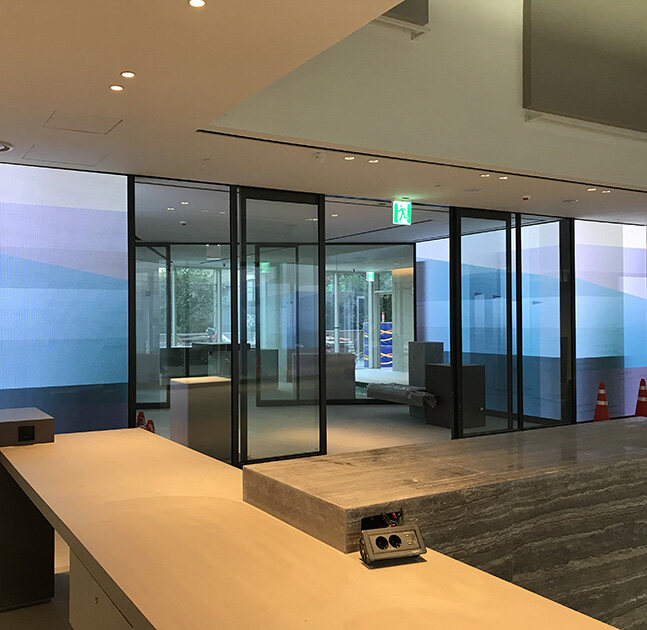

HNC PRO series can be widely used in various occasions,
high-definition and ultra-high definition are available！
High-end magnificent in appearance, concise and beautiful.
1.6丨 1.8丨 2.5丨 3丨 4
360000丨 284444丨 160000丨 111111丨 62500
600丨 600丨 900丨 900丨 900
The cabinet is very slim and light, it’s only 68mm thick and only
6.4kg in weight which can achieve better effect and save labor force.
Cushion design on cabinet bottom
Rreducing lamp bumping when moving cabinets
Ventilation holes on the module is designed for better flatness and heat dissipation.
Fast installation with aluminium bracket

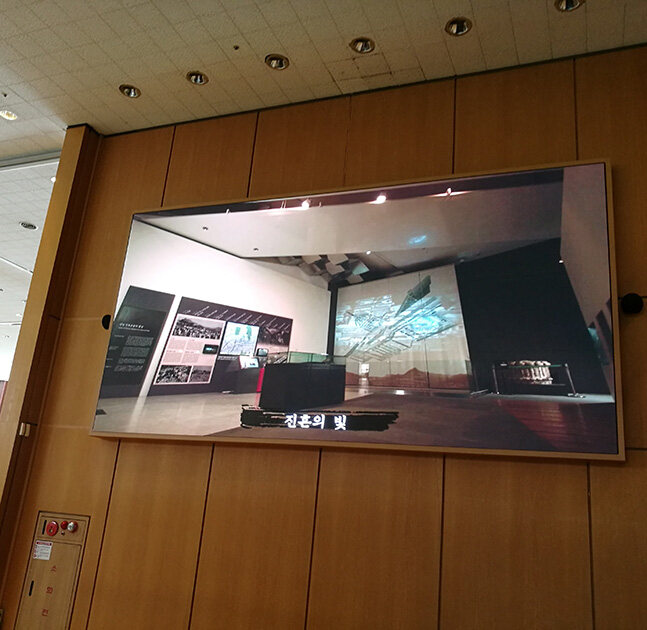

The screen can mount on the wall with structure
Standard arc sheet:± 5°,
which can easily achieve
concave and convex screen.
Customized curve: as requires.
First, pull out the two modules
nearby; second loosen the screws;
then get out the receiving card,
power and HUB.
There are 4 locating pin which are useful for quick positioning during
installation to make the work more quick and convenient.
There are fast locks on cabinet up and down side which can splicing
two cabinet quickly.
High-end magnificent in appearance, concise and beautiful.
| HNC1.6 PRO SPECIFICATIONS | ||
| Version：V20200818 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1010 |
| Pixel Pitch （mm） | 1.6 | |
| Pixel matrix per panel | 288x288 | |
| Pixel density（pixels/sq.m.） | 360000 | |
| Cabinet Dimensions (WxHxD)/（mm） | 480x480x68 | |
| Module Dimensions (WxH)/（mm） | 240x240 | |
| Panel material | Die Casting Aluminum | |
| Cabinet weight (kg/panel) | 6.4 | |
| Module weight (kg/panel) | 0.5 | |
