High-end magnificent in appearance, concise and beautiful.
2.6丨 2.9丨 3.9丨 3.9丨 4.8丨 5.9
147456丨 112896丨 65536丨 65536丨 43264丨 28224
1000丨 1000丨 1100丨 5500丨 5500丨 5500

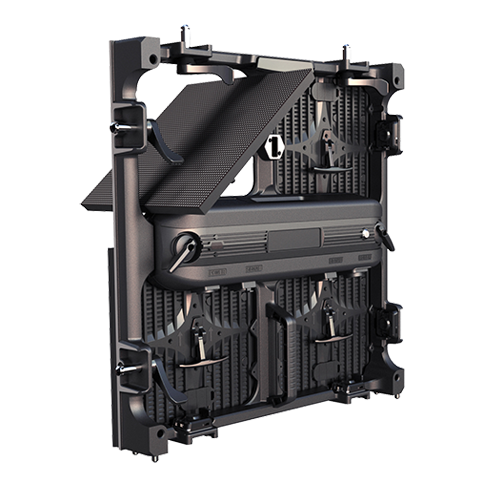

For indoor models, magnetic module design enables quick front/rear service.

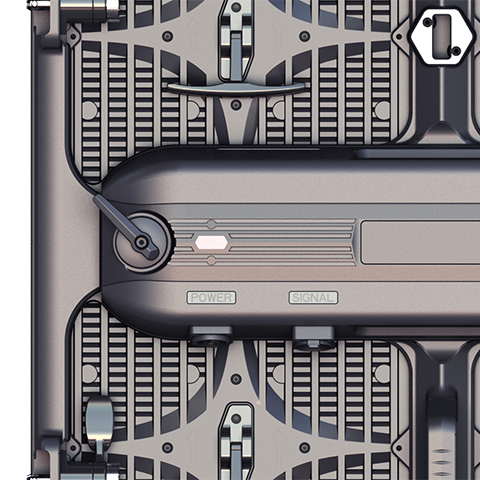

For outdoor models, 4 screws are used per module, plus magnets to balance the ease of use, flatness and safety Two handles to remove power box, again one of the quickest design in the industry.

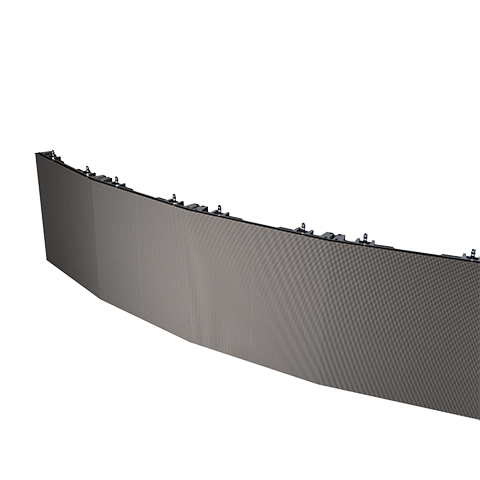

Curve cabinet unique design .Testing the product of mosaic technology, Display extraordinary LED effect and visual perception.
One man install with quickest ever top locks. For either stacking or hanging, with simply a click to self-lock the two cabinets. There’s clear click feel as well as a visible sign designed to indicate the lock status to avoid misoperation. Handles are then used to tighten the connection and eliminate gaps.
Lighter weight and better thickness control of our cabinet with fast locks makes hanging more efficiently
Rigid and strong stacking frame , ensure the stability of product installation
A perfect side locking system should deliver great combination of seamless connection, good handling experience, and reason- able cost. Comet has
two sets of curvable side locks to ensure the solid connection. The accurate
machining delivers a seamless connection up to 5 degrees convex at 2.9mm.
-5°,0°,5°,10°
With a highly standardized modular design, the different models of Comet series share the same cabinet frame, power box, easy to manage spares and services for those who have purchased different models.
With very simple additional accessories, the standard cabinet can be used as a floor.
We also have professional floor tiles directly that can be used to get on the car , More options, more business opportunities!
RN2.6S SPECIFICATIONS | ||
Version:V20210802 | ||
Parameter | Value | |
Physical Parameter | Pixel Configuration | SMD1515 |
Pixel Pitch (mm) | 2.6 | |
Pixel matrix per panel | 192x192 | |
Pixel density(pixels/sq.m.) | 147456 | |
Cabinet Dimensions (WxHxD)/(mm) | 500x500x85 | |
Module Dimensions (WxH)/(mm) | 250x250 | |
Panel material | Die Casting Aluminum | |
Cabinet weight (kg/panel) | 8 | |
Module weight (kg/panel) | 0.7 |
