Conciseness for More Possibilities
Multi-functional led display, amazing display effect with great noise control,recommended for boardroom, specialty stores, meeting rooms, monitoring and controlling center.
High-end magnificent in appearance, concise and beautiful.
1.5丨 1.9丨 2.5丨 2.6丨 2.9丨 3.1丨 3.9
409600丨 262144丨 160000丨 147456丨 112896丨 102400丨 65536
600丨 600丨 900丨 900丨 900丨 900丨 900

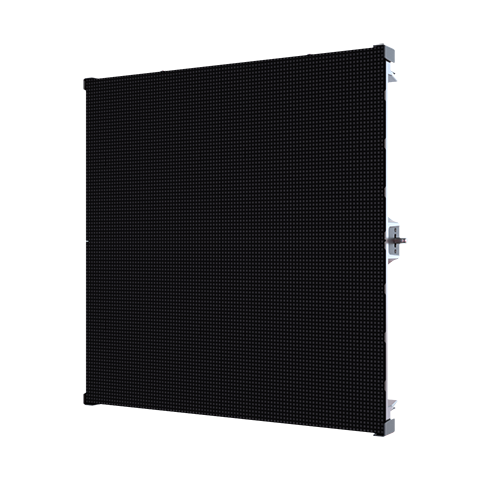

The cabinet is slim, it’s only 81mm in thickness which can achieve better wall mounted effect
-The cabinet is light, it’s only 7.5kg in weight which is labor saving.
There are 4 protection corners and There are locating pins on cabinet bottom which Can reducing lamp bumping when moving Cabinets.
Two sets of wiring plugins, the left and the right swap places

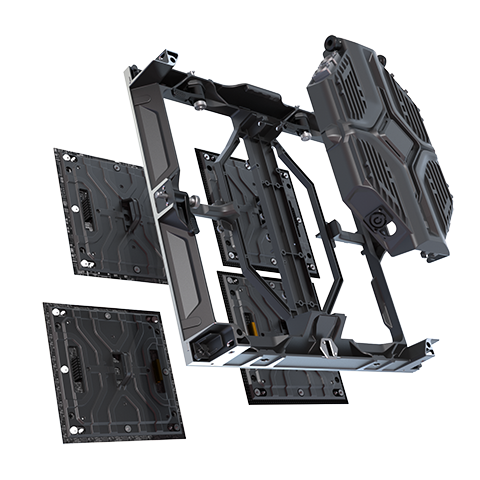

PCB is in direct contact with the cabinet body for better flatness;
Signal and power supply are equipped with standard navigation plug, so the connection is faster and more stable;
Dual backup of power supply and receiving card is optional
Optional smart module with calibration storage function
The room of control box is bigger, and there are many heat dissipation rubbers, which are good for heat dispassion.
Clamshell control box, easy to maintain.

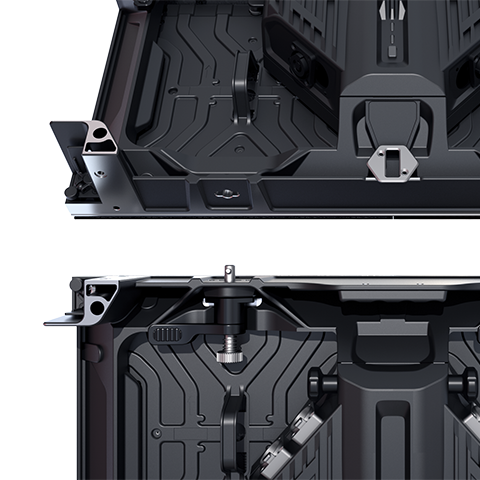

There are 4 locating pins which are useful for quick positioning during installation to make the work more quickly and conveniently;
There are two sets fast locks on cabinet upside and downside and 3 snap-locks on left and right side which can splicing two cabinet quickly.
There are installation diagram, achieving fast installation.
After installing the standard box body connector, provide the installation structure drawing;

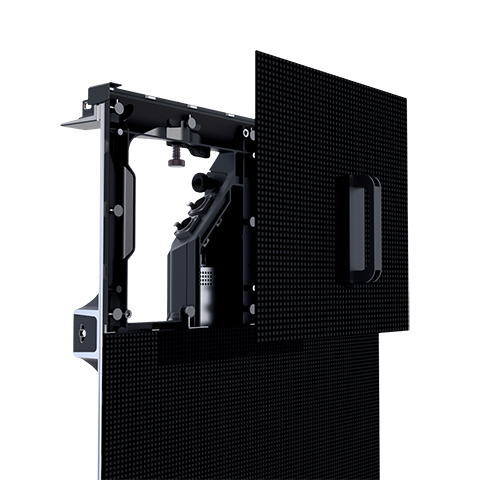

When maintain power, receiving card and HUB from rear side that you just need to pull out the two modules nearby; second loosen the screws; then get out the receiving card, power and HUB.
Full HDR display scheme is provided

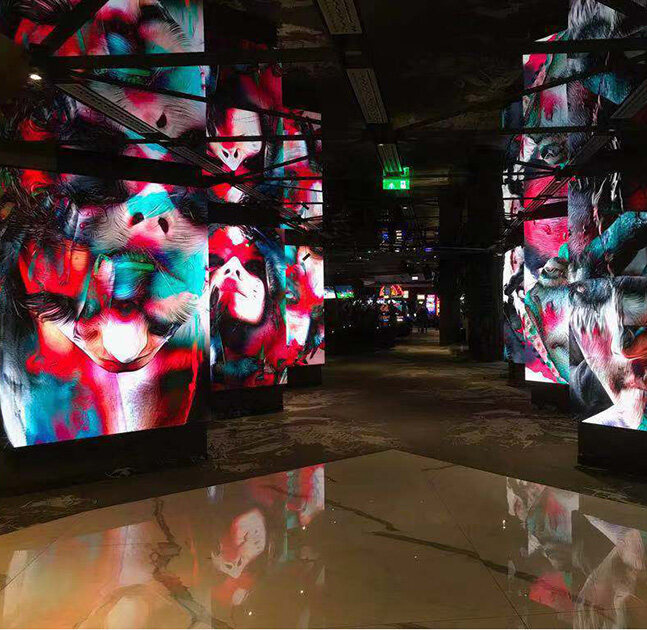

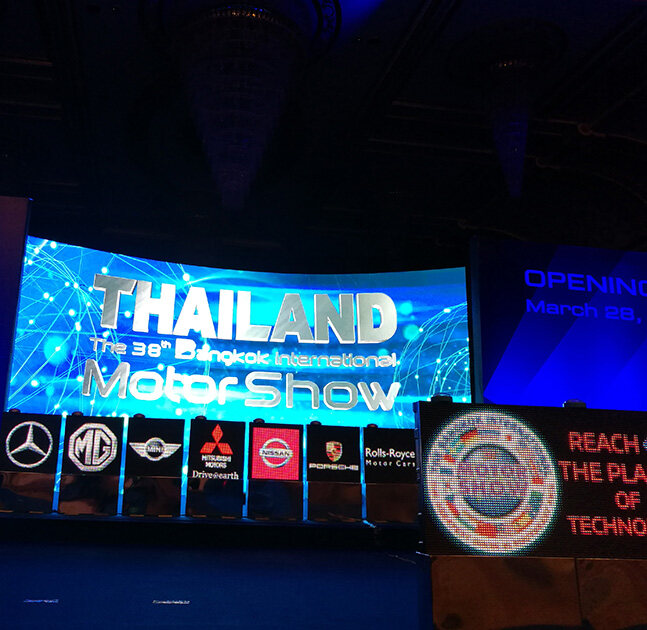

The product can be widely applied in different applications.
| GN1.5 PLUS SPECIFICATIONS | ||
| Version：V20200811 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1010 |
| Pixel Pitch （mm） | 1.5 | |
| Pixel matrix per panel | 320x320 | |
| Pixel density（pixels/sq.m.） | 409600 | |
| Cabinet Dimensions (WxHxD)/（mm） | 500x500x81 | |
| Module Dimensions (WxH)/（mm） | 250x250 | |
| Panel material | Die Casting Aluminum | |
| Cabinet weight (kg/panel) | 7.5 | |
| Module weight (kg/panel) | 0.57 | |
