Multi-functional led display, amazing display effect with great noise control,recommended for boardroom, specialty stores, meeting rooms, monitoring and controlling center.
High-end magnificent in appearance, concise and beautiful.
2.5丨 2.6丨 3.1丨 3.9
160000丨 147456丨 102400丨 65536
900丨 900丨 900丨 900
Hanging: Lighter weight and better thickness control of our cabinet with fast locks makes hanging more efficiently

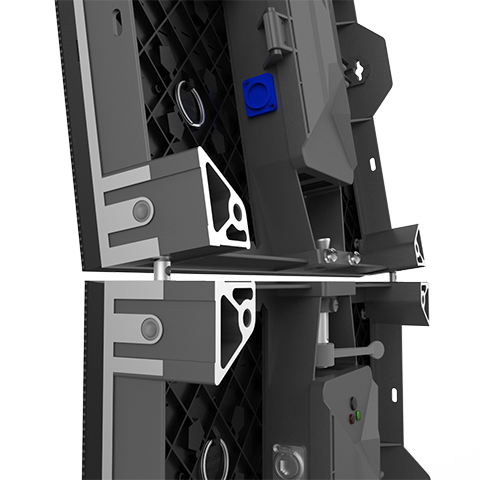

Stacking: Rigid and strong stacking frame , ensure the stability of product installation
Curve cabinet unique design. Testing the product of mosaic technology, Display extraordinary LED effect and visual perception.
Perfect solution to the column of LED display, multi-dimension exhibition takes more attention and benefit of the advertisement

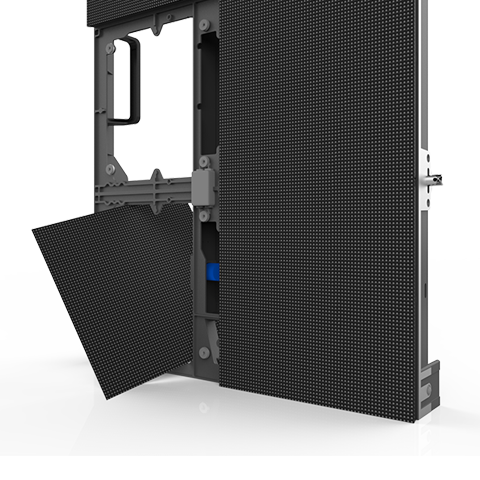

Front maintenance, no maintenance path needed each module is equipped with magnet cylinders, which connect the module onto the panel structure.
Ultra high precision CNC workmanship processing precision<0.1mm.Specioal seamless Connection design. Adjustable cabinet structure to control the gap within ±0.03mm
Each module is equipped with magnet cylinder, which
Connects the module onto the panel structure.

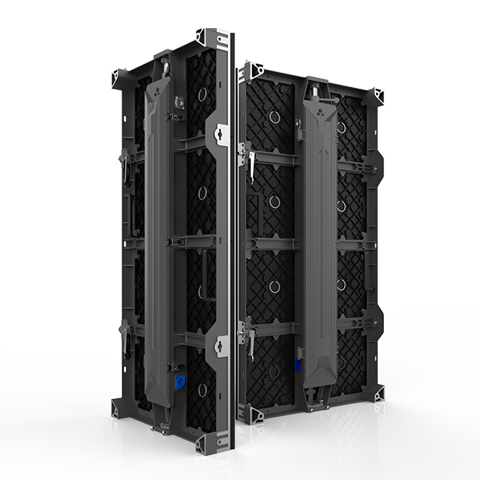

There are 1 set fast locks on cabinet right and left side which can splicing two cabinet quickly.
Multi-function/ Widely application/ Design for fix
| GN2.5 SPECIFICATIONS | ||
| Version：V20200810 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD2020 |
| Pixel Pitch （mm） | 2.5 | |
| Pixel matrix per panel | 200x200/400 | |
| Pixel density（pixels/sq.m.） | 160000 | |
| Cabinet Dimensions (WxHxD)/（mm） | 500x500/1000x83 | |
| Module Dimensions (WxH)/（mm） | 250x250 | |
| Panel material | Die Casting Aluminum | |
| Cabinet weight (kg/panel) | 7.5/13.5 | |
| Module weight (kg/panel) | 0.6 | |
