Quick Installation, Convenient Operation
Applications:
Stadiums, The commercial plazas, Railway station squares, Airports, Pedestrian Streets, Bus stations, Metros, Leisure wharfs, Exhibition halls, etc.
High-end magnificent in appearance, concise and beautiful.
5丨 6.67丨 8丨 10丨 16
40000丨 22500丨 15625丨 10000丨 3906
5500丨 6000丨 6000丨 6000丨 6000

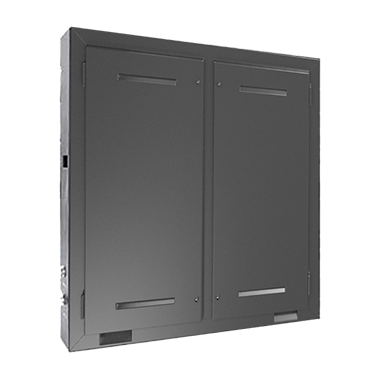

The thickness of the cabinet is only 103mm and the weight have 47kg/panel（steel）and 29kg/panel （aluminum profile）two choices.
Save 3pcs AC fans in the original system box to make more space.
Module chasis 45 degreed cutted
Screen outter curved: 90~180 degrees
There are corresponding holes on the modules which connect the fast lock, it’s very convenient to use screwdriver lock or dismantle the module from front side.
The power with a big fan that blows through the gap can speed up heat dissipation to ensure the display effect and prolong the display use life.
Bigger circular holes speed up heat dissipation much quickly than traditional small holes.
The system box is added with a water baffle that can protect from gathering water inside.
Reducing the risk of water ingress into the module
Dustproof, salt-spray proof, waterproof
There are 4PCS magnets on module and frame which are helping for fast position and ensure module flatness.
Meet the needs of different application.
DOOH advertising
Feel protected in water
| L5S SPECIFICATIONS | ||
| Version：V20200824 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1921 |
| Pixel Pitch （mm） | 5 | |
| Pixel matrix per panel | 192/256x192 | |
| Pixel density（pixels/sq.m.） | 40000 | |
| Cabinet Dimensions (WxHxD)/（mm） | 960/1280x960x103 | |
| Module Dimensions (WxH)/（mm） | 320x320 | |
| Panel material | Aluminum Profile | |
| Cabinet weight (kg/㎡l) | 29/38 | |
| Module weight (kg/panel) | 1.33 | |
