Priority for Indoor Commercial Display
Indoor LED display series delivering consistent image quality across P1.2 to P4 pixel pitches with a 3840Hz high refresh rate. Easy installation and broad compatibility make it a trusted choice for retail LED displays, indoor video walls, corporate signage, and LED videotron applications worldwide.
Worry-free with Unprecedented Stability
User-friendly with High Flexibility
Vivid Visual Experience
1.2丨 1.5丨 1.8丨 2丨 2.5丨 3.076丨 4
500丨 500丨 500丨 500丨 500丨 500丨 500
Cabinet weight: 7.8kg per cabinet;
Cabinet thickness: 60mm;
Front maintenance/ front & rear installation;
Hollowed design for easy assembling;

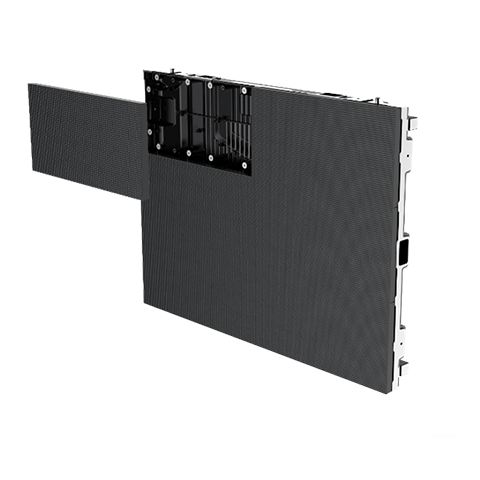

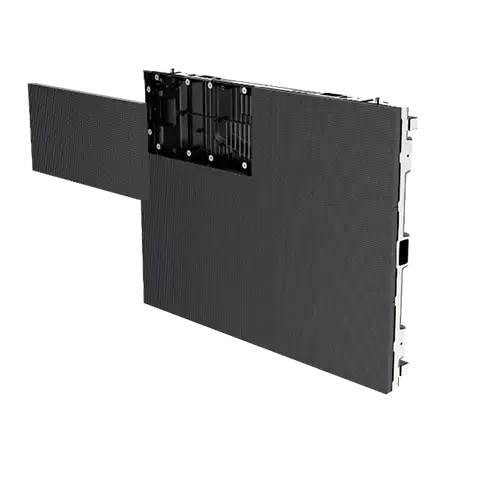

Tool-free module assembling & disassembling.
3840Hz high refresh rate.
Multiple unique heat dissipation designs ensure that the operating temperature of LDAII is 43℃, which is 5℃ lower than conventional LED display:
Contact thermal conductance accelerates heat dissipation;

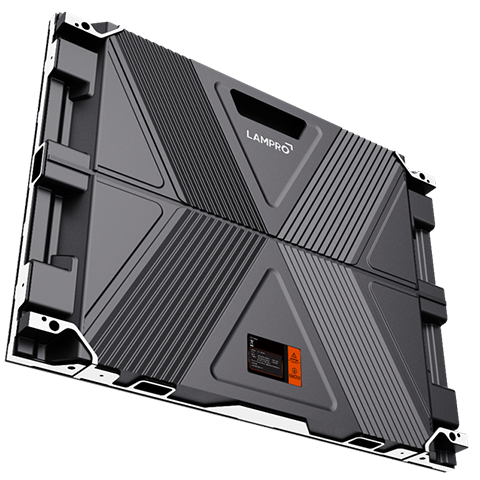

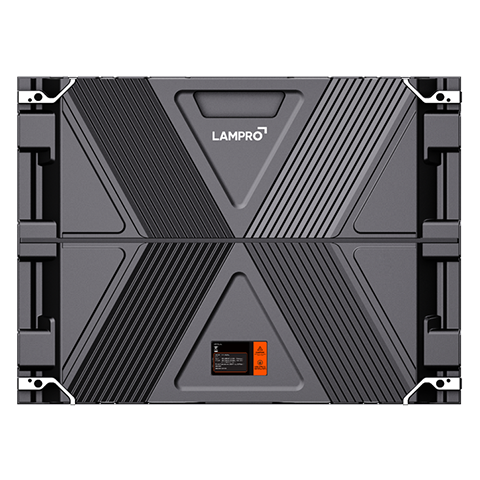

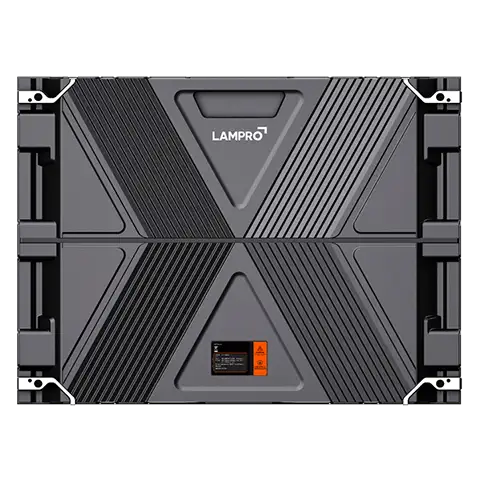

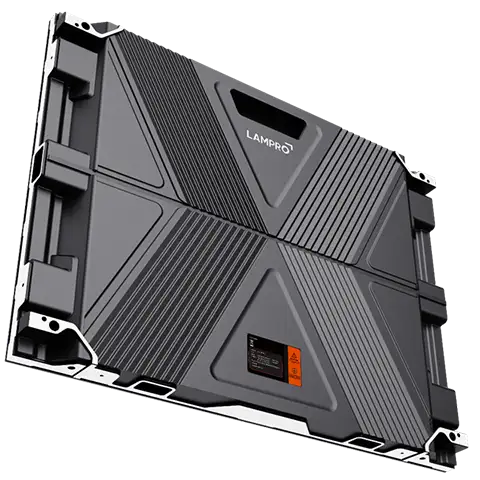

X-shaped hollowed & wave design for bigger heat dissipation area;
Textured Heat dissipation rib.
High precision dowel pin design for fast positioning;
XYZ axis adjustment: flatness≤0.2mm, for smooth display with no scan line.
Anti-collision design provides comprehensive protection to keep the lamp face, pad, and PBC from damage during delivery and splicing.

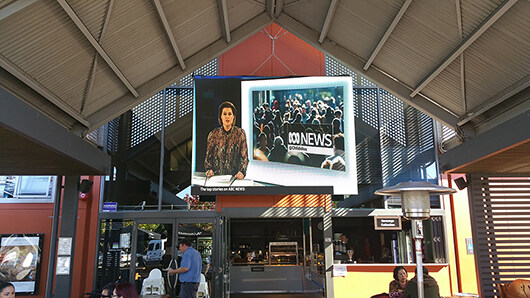

Fish tank screen, corner screen, rubik's cube screen and other creative modeling customizedMeet the exhibition hall, shopping mall, playground and other different scenes.
Easy real-time monitoring of operating status.
| LDAⅡ1.2 SPECIFICATIONS | ||
| Version：V20230518 | ||
| Parameter | Value | |
| Physical Parameter | Model | LDAⅡ1.2 |
| Pixel Pitch （mm） | 1.25 | |
| Cabinet Resolution | 512x384 | |
| Cabinet Size(WxHxD)/（mm） | 640x480x60 | |
| Module Resolution (WxH) | 256x128 | |
| Contrast | 3000:1 | |
| Refresh Rate | 3840HZ | |
| Beam Angle (Hor/Verdu°） | 160°/140° | |
