Free Splicing, Creative Assembly
Designed to bring creative ideas to life, it combines brilliant visuals with high brightness and high refresh rates for a smooth and engaging viewing experience. Its flexible splicing capability allows displays to be seamlessly configured into a variety of shapes, making it an ideal choice for exhibitions, trade shows, product launches, live events and stage productions.
High Brightness / High Refresh Rate / Modular Design / Flexible Splicing
Indoor: P2.6丨 Outdoor: P2.9/3.9
700nits丨 3500-3800nits丨 4000-4500nits
High Brightness, High Refresh Rate for crystal-clear and seamless visual effects

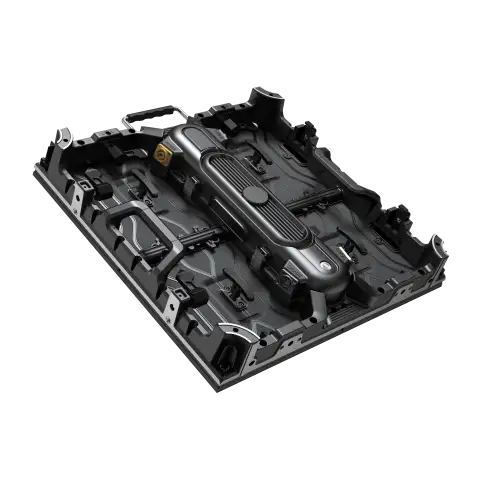

- Cabinet + LED Modules + Control Box
- Integrated Power Supply + HUB Board + Receiving Card
- Share the power supply between standard 500x500mm panel & XC (Corner)
- Left-right splicing: stacking installation recommended only
- Cross splicing: standard 500*500mm panels connected to 500*1000mm only

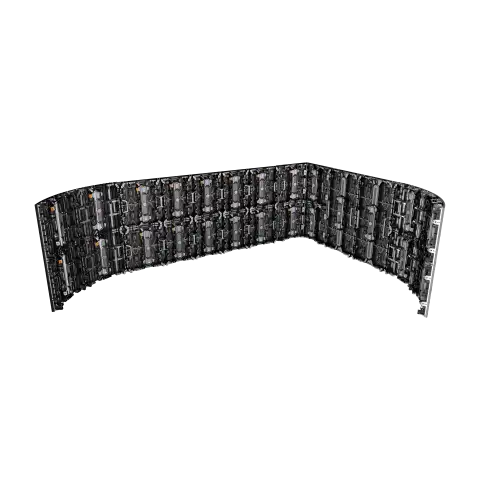

Adjustment angle ranging from -12.5° to +15°, supporting flat, concave and convex shapes.
90° corner and 45° flexible panels are available as an option to create L-shaped or S-shaped displays for impressive performance.
Front and rear maintenance for indoor panels, while outdoor panels support rear maintenance, for which front maintenance is optional
LRM PRO SPECIFICATIONS |
||||
Parameter |
Value |
|||
Physical Parameter |
Pixel Pitch (mm) |
2.6 | 2.9 Outdoor | 3.9 Outdoor |
Cabinet Size (WxHxD)/(mm) |
500 x 500 / 1,000 x 86 |
|||
Module Size (WxH)/(mm) |
250 x 250 | |||
Contrast |
5,000:1 | 4,000:1 | ||
Refresh Rate |
7680Hz | |||
Viewing Angle (H/V °） |
150°/150° | 160°/160° | ||
