Brand New Mini Product
COB Mini LED panel delivering ultra-fine resolution with energy-efficient, eye-friendly performance. Full flip-chip COB technology achieves exceptional contrast, low power consumption and blue-light protection — ideal for high-end indoor installations, corporate showrooms and fine pitch display applications down to 0.9mm pixel pitch.
Comfortable Viewing Experience / Energy Saving Design / User-friendly Design
0.93丨 1.25丨 1.56丨 1.8
600-800
LMini is equipped with HDR high dynamic image display technology, which makes the display screen more detailed - brighter places are brighter, dark places are darker, and the contrast between light and dark is more vivid, perfectly restoring the original picture.
Note: optional function
EBL+（Enhance black level+）Multilayer optical processing technology:
Ultimate pure black contents with 10000:1 super high contrast under 600nits brightness;
Ultra low reflective and touch trace.
LMini can minimization health hazards caused by long-term use of the screen, protect the eyes to the greatest extent and make the viewing more comfortable.

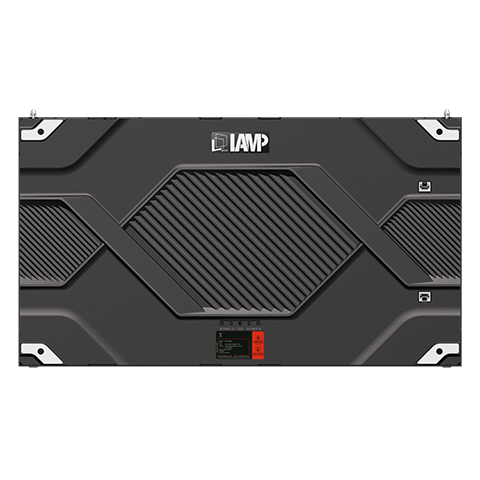

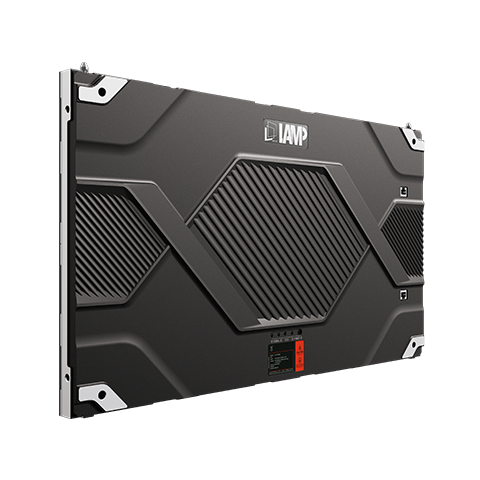

The three-in-one high-integration design of power supply, HUB and system card to reduce the retrieval and replacement of various accessories on site and improves the overall efficiency from design, transportation and installation.
Reduce the use of materials in raw materials, reduce the process in production, and reduce the energy consumption of production equipment.
LMini adopts a surface light source design, combined with the consistent pattern of chip arrangement and structure, as well as nano-optical material diffusion technology to filter out stray light effects and make the chip emit light evenly, which greatly increases the viewing comfort.
30% lighter and thinner than conventional cabinets;
Reduce material usage from raw materials, reduce transportation energy consumption.
LMini adopts RGB full flip-chip and common cathode design with larger light-emitting area and lower power consumption;
P1.5-Maximum power consumption: 200W/SQM; average power consumption: 80W/SQM; power consumption of 0.25 degrees per hour.
High Reliability: no welding wire, completely solve the failure caused by welding wire factors, greatly reduce the failure risk caused by metal migration, no SMD pad exposed, lower failure rate.
High Lumination: higher brightness with the same chip size of the chip, smaller chips with the same brightness requirements.
High Stability: reduce thermal resistance, efficient heat dissipation, improve device life and color stability.

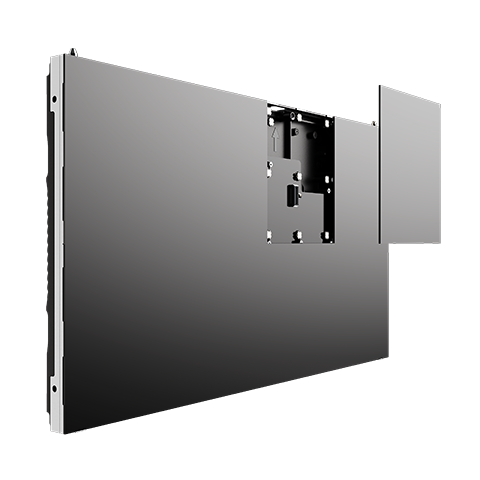

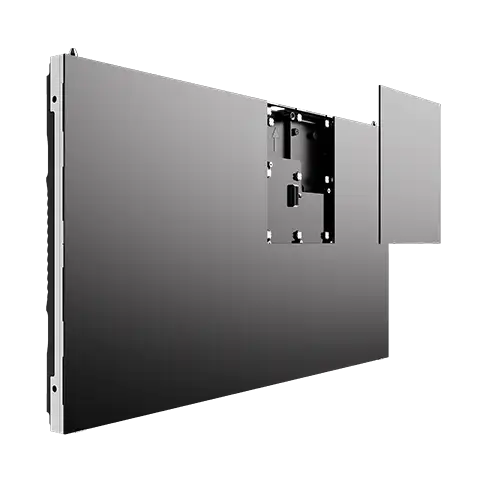

Full front maintenance;
cabless module.

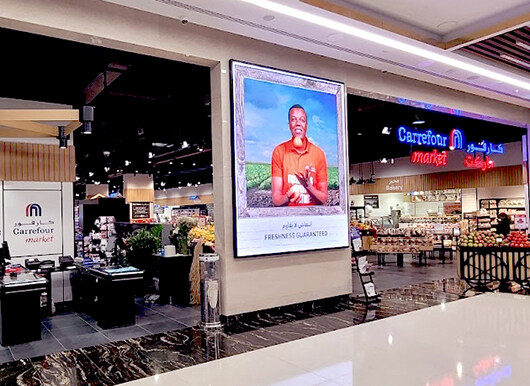

Widely applied for control rooms, conferences, monitor rooms, exhibition halls, and education.
| LMini0.9 SPECIFICATIONS | ||
| Version：V20230309 | ||
| Parameter | Value | |
| Physical Parameter | Model | LMini0.9 |
| Pixel Pitch （mm） | 0.93 | |
| Cabinet Resolution | 640x360 | |
| Cabinet Size(WxHxD)/（mm） | 600x337.5x29.6 | |
| Module Size (WxH)/（mm） | 150x168.75 | |
| Contrast | 10000:1 | |
| Refresh Rate | 3840HZ | |
| Viewing Angle | 180° | |
