Lead P1 Era of Indoor Rental
The best solution for XR
Compatible with NOVA、COLORLIGHT、BROMPTON(Optional for RN1.5/RN1.8/RN1.9/RN2.6) control systems, MEGAPIXEL control system can be customization
High-end magnificent in appearance, concise and beautiful.
1.3丨 1.5丨 1.8丨 1.9丨 2.3丨 2.6丨 2.9丨 3.9
589824丨 409600丨 278784丨 262144丨 176400丨 147456丨 112896丨 65536
600丨 600-700丨 600-800丨 700丨 1000丨 1000丨 1000丨 1000
500x500mm with weight 7.53kg
RN1.3/1.5/1.8/1.9 -2.5° concave ~ +7.5° convex
RN2.3/2.6/2.9/3.9 -5° concave ~ +7.5° convex
Depth : 66mm

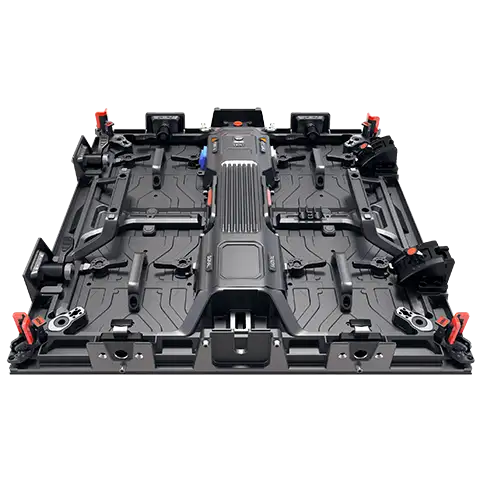

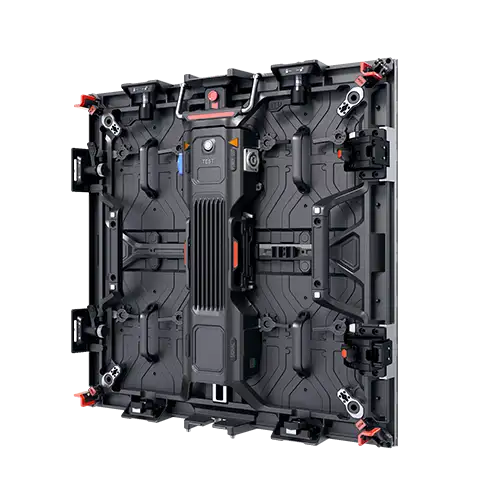

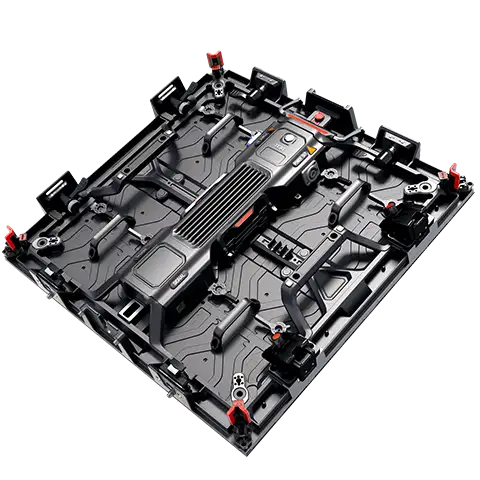

Auto popup T-shap prelock on cabinet top supports one person installation
High definition with vivid displaying effect, showing the real & original colors perfectly

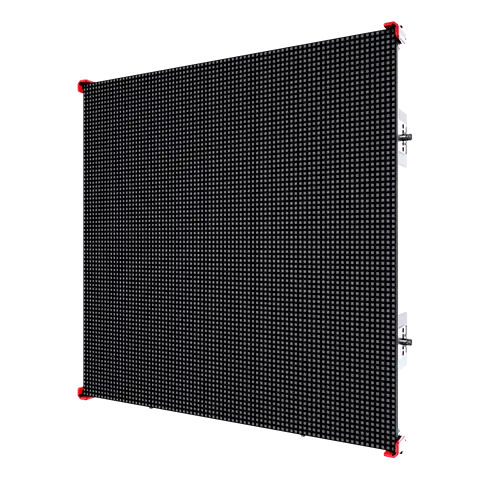

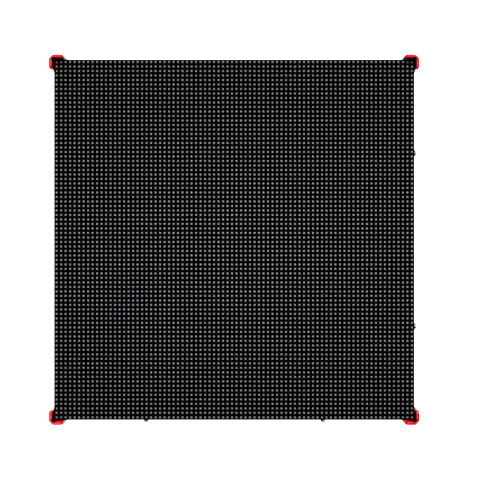

Cabinet bottom has padding protection, four corners have protectors.
Just need press push button to release auto corner protection.
Customized right-angle cabinets
can build up cube LED
| RN1.9 SPECIFICATIONS | ||
| Version：V20210801 | ||
| Parameter | Value | |
| Physical Parameter | Pixel Configuration | SMD1515 |
| Pixel Pitch （mm） | 1.9 | |
| Pixel matrix per panel | 256x256 | |
| Pixel density（pixels/sq.m.） | 262144 | |
| Cabinet Dimensions (WxHxD)/（mm） | 500x500x66(Straight)/73(Arc) | |
| Module Dimensions (WxH)/（mm） | 250x250 | |
| Panel material | Die Casting Aluminum | |
| Cabinet weight (kg/panel) | 7.3/7.8 | |
| Module weight (kg/panel) | 0.53 | |
