For years, traditional SMD (Surface-Mounted Device) technology was the standard for indoor LED displays. It offered good performance and, crucially, was easy to repair at the pixel level.
But as the demand for 4K/8K resolution and durable screens grew, SMD's limitations became a major problem.
- Fragility: The exposed LED packages are delicate and easily damaged during installation or even routine cleaning.
- Physical Limits: SMD technology struggles to go below a 1.0mm pixel pitch, creating a hard ceiling for true ultra-high-definition displays.
This conflict left a major gap in the market. Now, a new technology has emerged to solve this exact problem: MIP (Micro LED in Package). It takes the best part of SMD, serviceability, and combines it with the next-generation performance and durability the market demands.
What is MIP (Micro-LED in Package)?

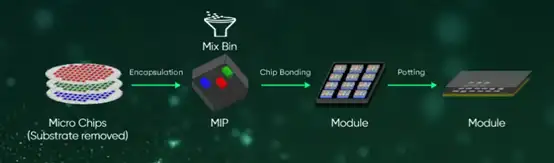

MIP (Micro-LED in Package) is a hybrid packaging technology. It integrates thousands of microscopic LED chips into a single, robust, surface-mountable package.
- Instead of using a standard SMD package, the MIP display process takes microscopic red, green, and blue chips and seals them inside a tiny, robust, individual "pixel package" first.
- These pre-packaged, highly durable pixels are then mounted onto the final circuit board using standard, high-efficiency SMT processes.
This "best of both worlds" approach means a MIP LED display gets the durability and ultra-fine pitch capabilities of COB plus the pixel-level serviceability and manufacturing scalability of SMD.
MIP Display vs. SMD
For buyers looking to upgrade their visual technology, the leap from SMD to MIP is significant. MIP directly solves the primary weaknesses of traditional SMD.
Video introduction: Watch on Facebook
Durability & Reliability
- SMD: The LED chips on an SMD panel are exposed. They are highly susceptible to damage from physical impact, dust, moisture, and static electricity.
- MIP LED: A MIP display encapsulates each tiny pixel in a protective resin shell. This makes the screen incredibly robust and resistant to the common hazards of high-traffic environments.
Visual Performance: Pitch, Brightness, & Contrast
MIP delivers a visual experience that SMD physically cannot.
- Pixel Pitch: MIP is a true fine pitch LED display technology, capable of pushing well into the sub-millimeter range.
- Brightness & Contrast: MIP is a true high brightness LED display, capable of reaching levels up to 4,000 nits or more.
- Color Consistency: The MIP manufacturing process allows every single pixel to be tested and sorted for color and brightness before placement.
At-a-Glance: MIP vs. SMD
TL; DR: Hover over the table rows to compare specific features.
| Feature |
MIP (Micro LED in Package) |
SMD (Surface-Mounted Device) |
| Repairability |
Excellent (Pixel-level) |
Excellent (Pixel-level) |
| Durability |
Excellent (Encapsulated) |
Poor-Fair (Exposed LEDs) |
| Pixel Pitch Range |
Ultra-Fine (P0.4 - P2.5) |
Fine to Large (P0.7+) |
| Brightness (Nits) |
Very High (up to 4,000+) |
Medium |
| Contrast Ratio |
High to Very High |
Medium |
| Color Consistency |
Excellent (Pre-binned pixels) |
Fair-Good |

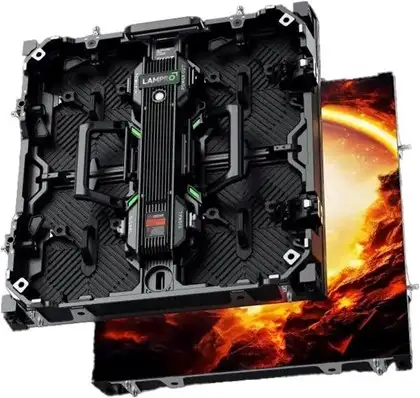

Spotlight on LAMPRO RNⅡ Series
Seeing is believing. The clearest proof of MIP's advantages is seeing it in action. Our LAMPRO RNⅡ Series was engineered to lead the P1 era of indoor rental.
Notice*: Fine pitch LAMPRO RNⅡ P1.9 version features the MIP technology and the P2.6 mode features U-shield tech, which is 3 to 4 times stronger than regular SMD 1515.
- Superior Visuals: Stunning 15,000:1 high contrast ratio and 96% DCI-P3 color gamut.
- Extreme Durability: U-shield technology is 3-4 times stronger than regular SMD displays.
- Real-World Serviceability: Fully front and rear maintenance with modular cabinet design.
What Are the Applications of MIP LED Display?
MIP's unique blend of performance, durability, and serviceability makes it the ideal solution for high-value indoor applications.
- Corporate Environments: Perfect for conference rooms where high resolution and brightness are critical.
- Mission-Critical Control Rooms: Demands 24/7 flawless reliability and accuracy.
- Broadcast & Virtual Production: Requires perfect color consistency for camera-ready performance.
- Premium Retail & Lobbies: Durable enough for high-traffic areas while remaining eye-catching.
Upgrade Your Screen Now with LAMPRO
Don't let legacy technology limit your vision. Contact LAMPRO or visit our product list for more advanced LED displays.
